Product Name
|
Fpc Connector
|
|||
|
Brand Name
|
|
|||
|
Voltage Rating
|
50 VAC
|
|||
|
Withstand Voltage
|
500V /AC
|
|||
|
Insulation Resistance
|
500m ohm Min
|
|||
|
Temperature Range
|
-40℃ To +105℃
|
|||
|
Pitch
|
0.3mm/0.5mm/0.8mm/1.0mm/1.25mm/2.54mm
|
|||
|
Type
|
DIP/Angle/SMT , Single/Double Row, Top/Bottom Contact
|
|||
|
Sample
|
We can supply free sample
|
|||
90 Pin Female Header
90 Pin Female Header is a single row 40-holes female header. It can be cut to size with a pair of wire-cutters Standard-1 spacing. It is extensively used in the development boards. They mate very well with breakaway male headers.
Features of 90 Pin Female Header:
Receptacle Style: Square.
Number of Pins: 40.
Pin Spacing: 0.1" (2.54 mm).
Receptacle Depth: 6 mm.
Application of 90 Pin Female Header:
LCD interface in Development board.
DIY projects having replaceable breakout boards/Devices.

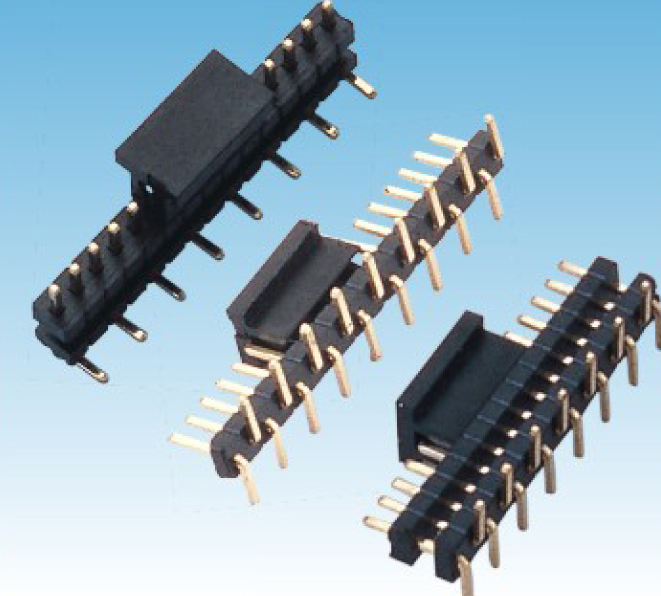

Spec:1.27mm Pin Single Row Straight Plastics Height:1.0/1.5/1.72/2.0/2.54mm positons:1*2~1*50

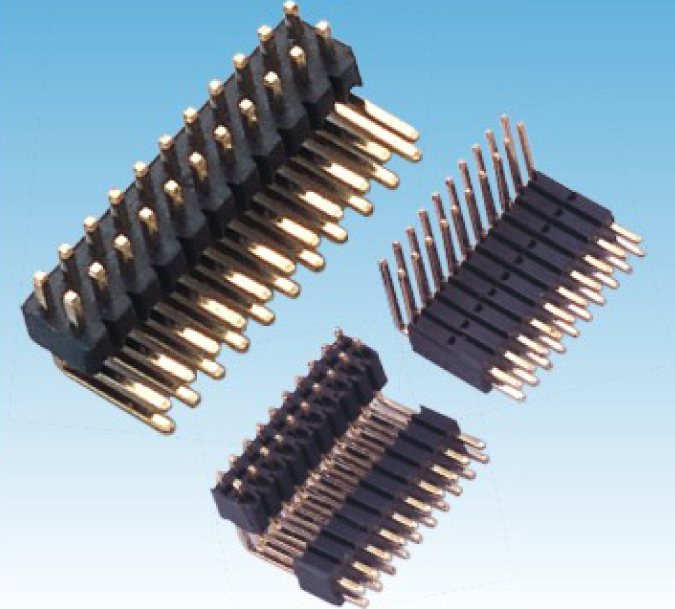

Spec:1.27mm Pin Single Row Straight Plastics Height:1.0/1.5/1.72/2.0/2.54mm positons:1*2~1*50

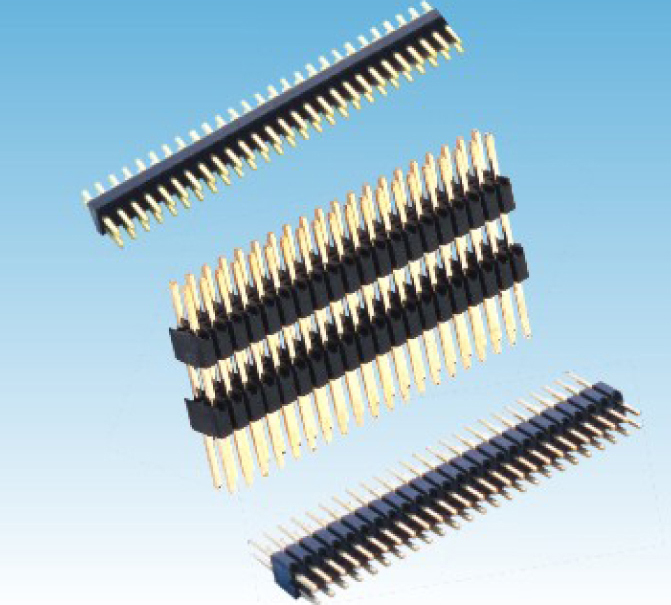

Spec:1.27mm 90 Pin Single Row Straight Plastics Height:1.0/1.5/1.72/2.0/2.54mm positons:1*2~1*50
